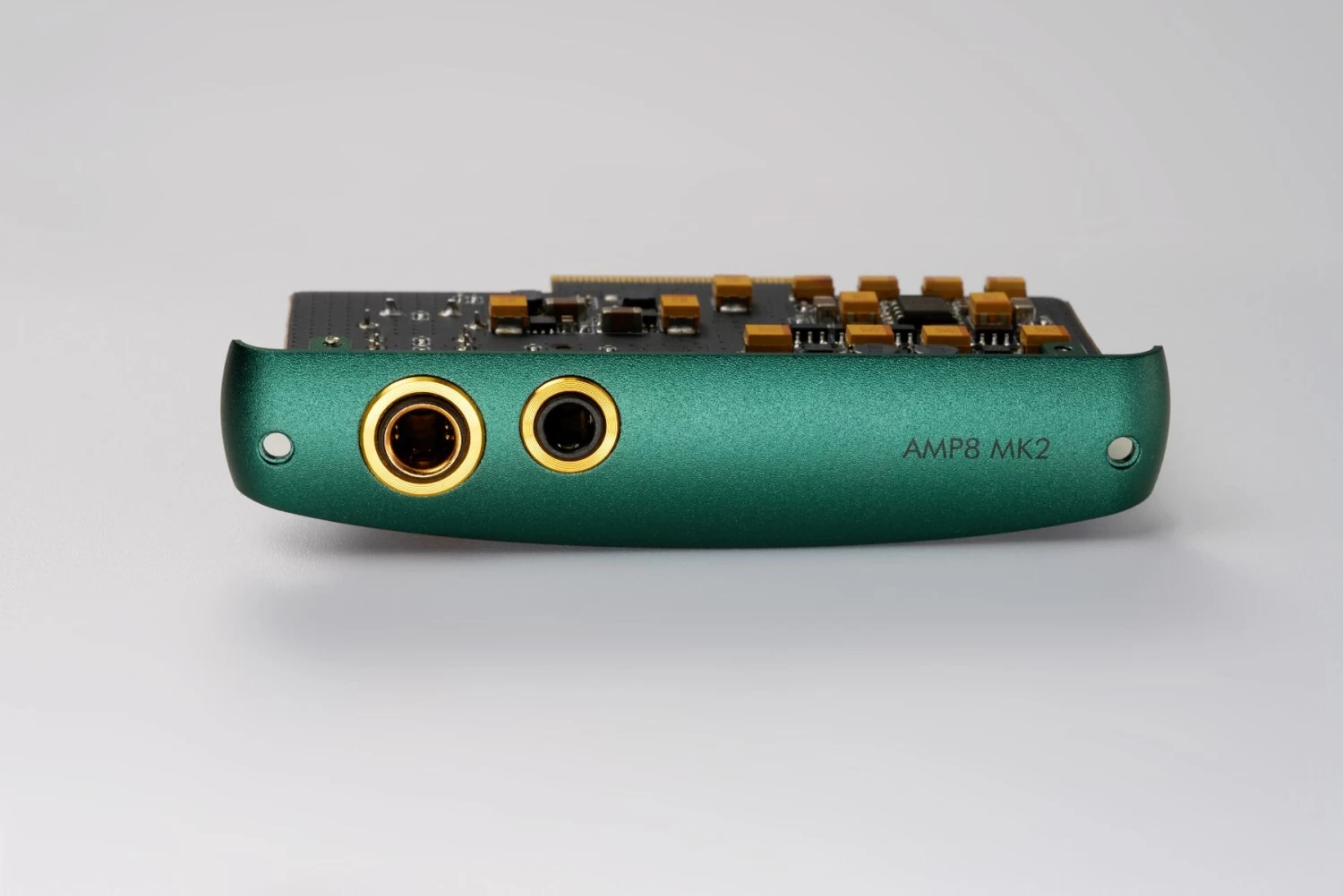

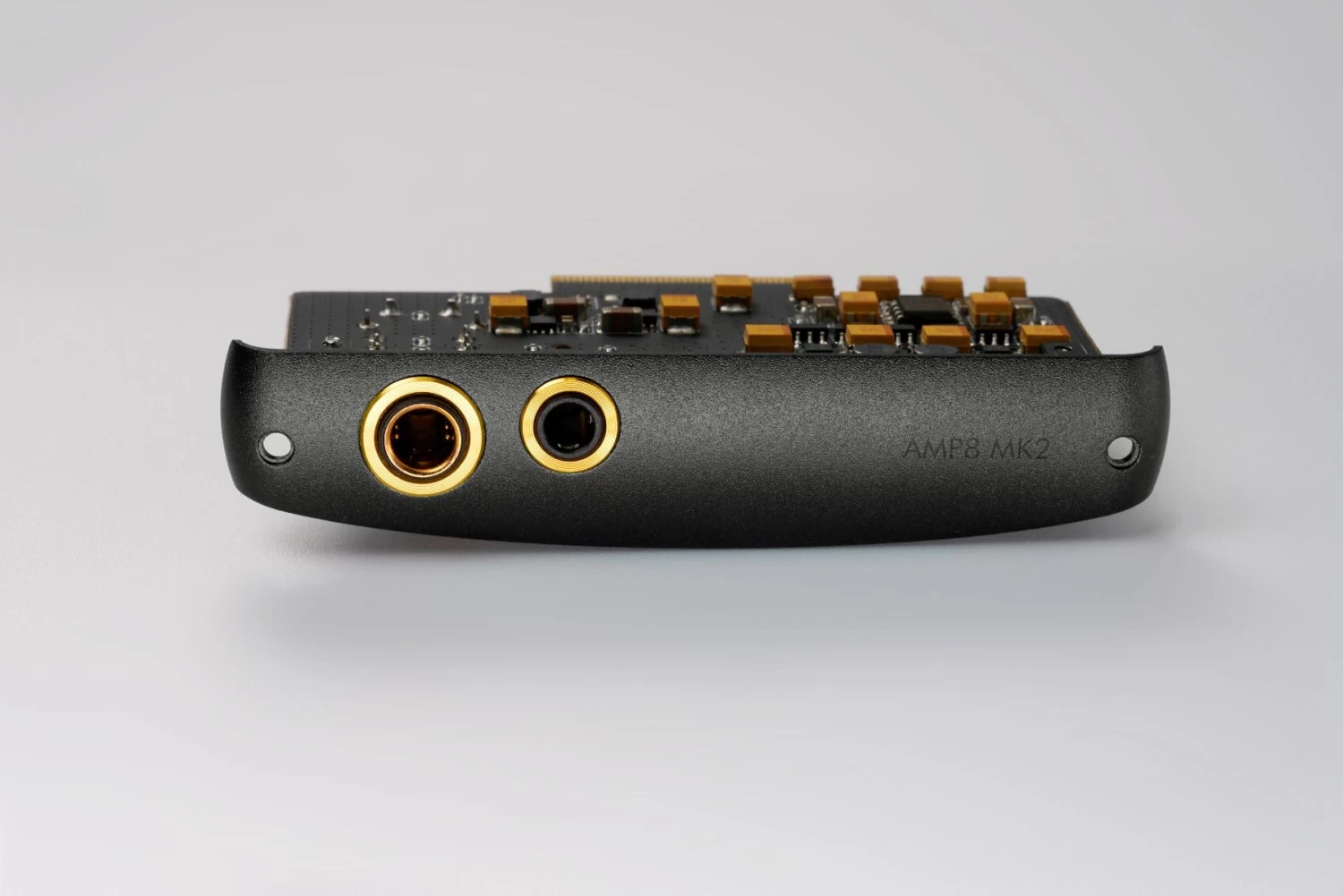

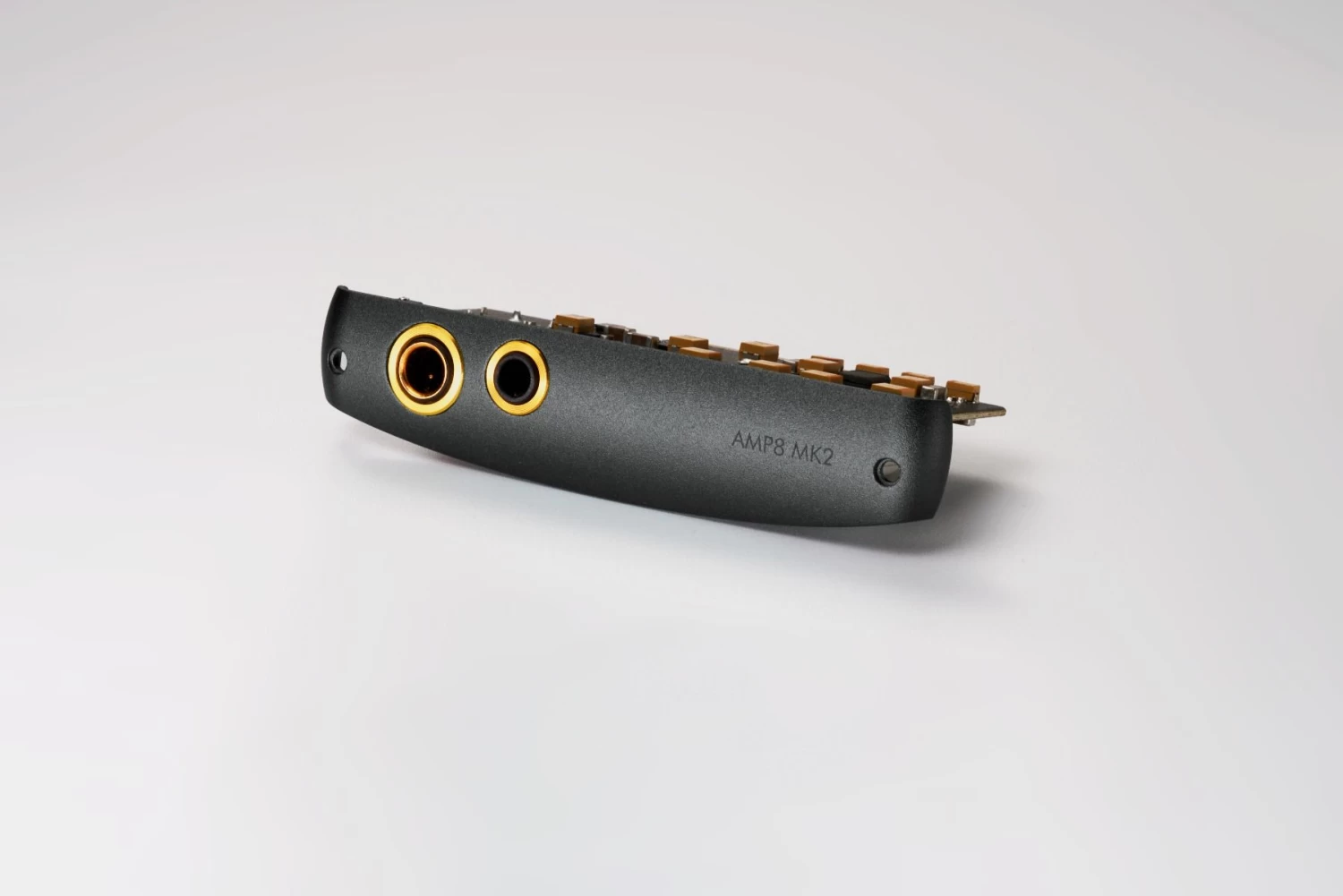

IBASSO – AMP8 MK2 MODULE AMP FOR DX240

4.4mm TRRRS Balanced, 3.5mm TRS SE AMP module for the DX240

Improve dynamics and headroom for more accurate sound from your DX240 with the AMP8 MKII balanced amp card.

4.4mm Headphone Out :

• Maximum Output Level 6.2Vrms
• Output Power£∫ 980mW@32ohm, 128mW@300ohm
• Frequency Response 10Hz-45kHz (+/- 0.3dB)
• S/N 125dB
• Dynamic Range 125dB
• THD+N£∫
• -114dB (NO LOAD)
• -113dB (@300ohm)
• -101dB (@32ohm)
• Crosstalk -122dB
• Output Impedance: 0.55ohm

3.5mm Headphone Out:

• Maximum Output Level 3.1Vrms
• Output Power 281mW@32ohm, 32mW@300ohm
• Frequency Response 10Hz-45kHz (+/- 0.3dB)
• S/N 122dB
• Dynamic Range 122dB
• THD+N
• -110dB (NO LOAD)
• -109dB (@300ohm)
• -98dB (@32ohm)
• Crosstalk -117dB
• Output Impedance: 0.32ohm
• Average Play Time: 9.5 hours

4.4mm TRRRS Balanced, 3.5mm TRS SE AMP module for the DX240
